CAI - RAYCHEM
RAYCHEM 3-1/2" Heavy Wall Heat Shrink End Cap Polyolefin, Shrink Ratio 2.5:1 - pkg. of 40
RAYCHEM 3-1/2" Heavy Wall Heat Shrink End Cap Polyolefin, Shrink Ratio 2.5:1 - pkg. of 40
Regular price
$225.00 USD
Regular price
Sale price
$225.00 USD
Unit price
/
per
Couldn't load pickup availability

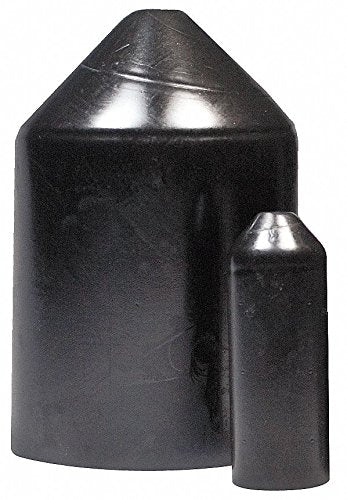

These heat-shrink end caps are designed to shrink and compress a hot-melt adhesive on the cable jacket, forming a secure environmental seal. Each fits easily over the cable end and shrinksin seconds, leaving a compact, rugged end seal.
Item: Heat Shrink End Cap
Shrink Tubing Type: Heat Shrink End Cap
Shrink Tubing Wall Type: Heavy Wall
Shrink Tubing Material: Polyolefin
Flame Retardant: No
Shrink Tubing Adhesive Lined: No
Shrink Tubing Usable Temp. Range: -67 Degrees to 275 Degrees F
Shrink Ratio: 2.5:1
Use Shrink Tubing With Wire Size: 4/0 AWG to 750 kcmil
Shrink Tubing I.D. Before Shrinking: 1.380"
I.D. After Shrinking: 0.590"
Shrink Tubing Wall Thickness After Shrinking: 0.100"
Shrink Tubing Length: 3-1/2"
Color: Black
Min. Shrink Temp.: 203 Degrees F
Max. Voltage: 1000V
Features: Meet/Exceed Industrial and Military Standards
Standards: ANSI C119.1
Listed with ExportYourStore.com
Item: Heat Shrink End Cap
Shrink Tubing Type: Heat Shrink End Cap
Shrink Tubing Wall Type: Heavy Wall
Shrink Tubing Material: Polyolefin
Flame Retardant: No
Shrink Tubing Adhesive Lined: No
Shrink Tubing Usable Temp. Range: -67 Degrees to 275 Degrees F
Shrink Ratio: 2.5:1
Use Shrink Tubing With Wire Size: 4/0 AWG to 750 kcmil
Shrink Tubing I.D. Before Shrinking: 1.380"
I.D. After Shrinking: 0.590"
Shrink Tubing Wall Thickness After Shrinking: 0.100"
Shrink Tubing Length: 3-1/2"
Color: Black
Min. Shrink Temp.: 203 Degrees F
Max. Voltage: 1000V
Features: Meet/Exceed Industrial and Military Standards
Standards: ANSI C119.1
Listed with ExportYourStore.com
